If you’re looking to get 12V power from your trailer plug, you’re in the right place. Whether you need to power a camping fridge, charge your phone, or connect any other 12V device, tapping into the power source of your trailer plug can be a convenient solution. In this guide, we’ll walk you through the steps on how to do it safely and efficiently.
Understanding the Trailer Plug
Before we dive into the process, let’s take a moment to understand the trailer plug. The 7-pin trailer plug, also known as the RV-style plug, is commonly used for towing trailers and connecting various electrical accessories.
Within the 7-pin trailer plug, the primary power outputs are the 12V power, ground, left turn/brake lights, right turn/brake lights, tail lights, backup lights, and electric brakes. For our purpose of accessing 12V power, we’ll focus on the specific wire responsible for supplying this voltage.

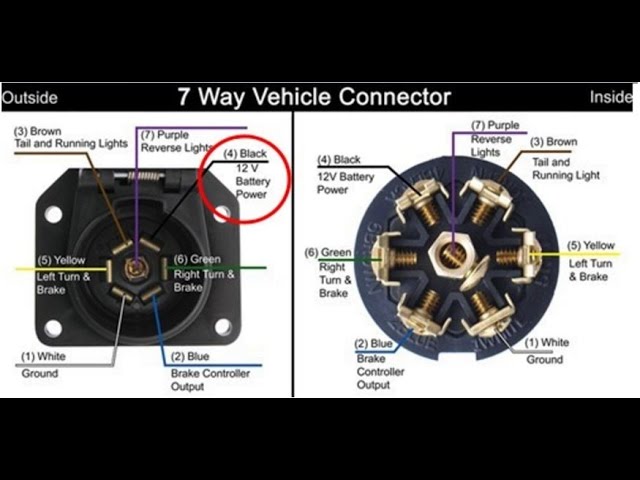

Identifying the 12V Power Wire
The 12V power wire is typically color-coded and can vary depending on the manufacturer, so it’s important to confirm which wire corresponds to the 12V power before proceeding. You can use a multimeter or consult the wiring diagram of your trailer plug to identify the correct wire. In most cases, the 12V power wire is color-coded black.
Tapping into the 12V Power Wire
Once you’ve identified the 12V power wire, you can tap into it to extract the 12V power for your devices. Here’s how:
- Prepare the necessary tools: Make sure you have a wire stripper, electrical tape, and crimp connectors handy.
- Disconnect the power source: Before working with any electrical components, it’s crucial to disconnect the power source to prevent any accidents or short circuits. Disconnect the trailer from the tow vehicle and ensure that the battery is also disconnected.
- Locate the 12V power wire: Once the power source is disconnected, locate the 12V power wire inside the trailer plug connector.
- Strip the wire: Strip a small section of the insulation from the 12V power wire using the wire stripper.
- Connect your device: Depending on your requirements, you can use crimp connectors or soldering techniques to connect your device to the exposed section of the 12V power wire. Make sure the connection is secure.
- Insulate the connection: To ensure safety and prevent any short circuits, wrap the exposed section of the wire and the connection point with electrical tape or heat shrink tubing.
- Test the connection: After completing the connection, it’s essential to test if the 12V power is successfully reaching your device. Reconnect the power source and check if your device is receiving the desired voltage.
Always prioritize safety while working with electrical components. Ensure that all connections are secure, the wire insulation is intact, and any exposed wires or connections are insulated properly to avoid any hazards.
Frequently Asked Questions On How To Get 12v Power From Trailer Plug
How Can I Get 12v Power From The Trailer Plug?
To get 12V power from the trailer plug, you can use a 7-Way or 4-Way connector and connect it to your vehicle’s battery or accessory circuit.
What Are The Steps To Connect A Trailer Plug For 12v Power?
To connect a trailer plug for 12V power, first, identify the positive and negative pins on the plug. Then, connect the positive pin to the positive wire and the negative pin to the negative wire of your power source. Finally, secure the connections and test for power.
Can I Charge My Trailer Battery Using The 12v Power From The Plug?
Yes, you can charge your trailer battery using the 12V power from the plug. Connect the positive wire to the positive terminal of the battery and the negative wire to the negative terminal. Ensure proper connections and monitor the charging process.
Is It Safe To Get 12v Power From The Trailer Plug?
Yes, it is safe to get 12V power from the trailer plug as long as you follow proper wiring procedures and ensure secure connections. Use the correct gauge wires and take necessary precautions to avoid any electrical hazards.
What Precautions Should I Take When Getting 12v Power From The Trailer Plug?
When getting 12V power from the trailer plug, always ensure that the power source can handle the load. Use the appropriate wire gauge, secure connections, and protect the wires from damage. Regularly inspect the wiring for any signs of wear or corrosion to maintain safety.
Conclusion
Getting 12V power from your trailer plug can be a convenient solution for powering various devices while on the go. By following the steps outlined in this guide, you’ll be able to tap into the 12V power wire safely and effectively.
Remember to exercise caution, refer to the wiring diagram, and double-check your connections before using the 12V power for your devices. Now, you can confidently power up your camping trips or any other outdoor adventures without worrying about running out of battery.
