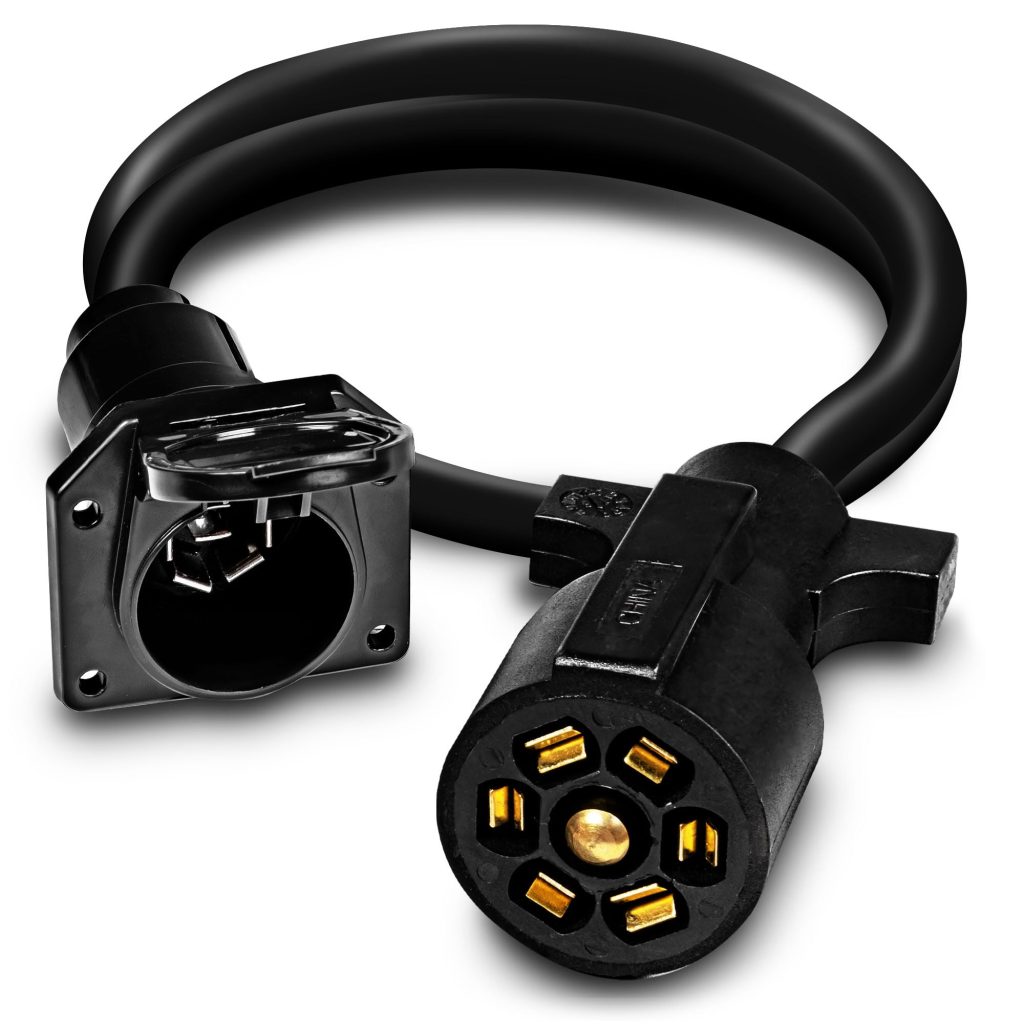

When it comes to towing a trailer, having a properly connected electrical system is crucial. The 7-pin trailer plug is the most common wiring connection used for trailers, which allows for the transmission of power for various functions such as lights, brakes, and indicators. In this article, we will guide you on how to correctly connect a 7-pin trailer plug to ensure a safe and reliable towing experience.
Tools and Materials Needed
Before we dive into the step-by-step process, make sure you have the following tools and materials ready:
- 7-pin trailer plug
- Wire cutter/stripper
- Electrical tape
- Heat shrink tubing (optional, but recommended)
- Phillips screwdriver
- Test light or multimeter
- Wire connectors
Step 1: Gather Information
The first step in connecting a 7-pin trailer plug is to gather information about the wiring requirements of your trailer. Consult the owner’s manual or manufacturer’s documentation to understand the color codes and functions of each wire.
Typically, the 7-pin trailer plug consists of the following wires:
| Wire Color | Function |
|---|---|
| Yellow | Left turn/brake light |
| Green | Right turn/brake light |
| Brown | Tail/marker light |
| Red | 12V power supply |
| White | Ground |
| Blue | Electric brake |
| Black | Auxiliary power |
Step 2: Prepare the Wires
After gathering the necessary information, it’s time to prepare the wires for connection. Use a wire cutter/stripper to strip off about 1 inch of insulation from the end of each wire.
Step 3: Connect the Wires
Now, let’s begin connecting the wires to the 7-pin trailer plug:
- Yellow Wire (Left turn/brake light): Connect it to the left turn/brake light terminal on the plug.
- Green Wire (Right turn/brake light): Connect it to the right turn/brake light terminal on the plug.
- Brown Wire (Tail/marker light): Connect it to the tail/marker light terminal on the plug.
- Red Wire (12V power supply): Connect it to the 12V power supply terminal on the plug.
- White Wire (Ground): Connect it to the ground terminal on the plug.
- Blue Wire (Electric brake): Connect it to the electric brake terminal on the plug.
- Black Wire (Auxiliary power): Connect it to the auxiliary power terminal on the plug.
Make sure to secure each connection properly using wire connectors. It is recommended to solder the wires and cover them with heat shrink tubing for added protection against moisture and vibration.
Step 4: Test the Connection
Once you have connected all the wires, it’s important to test the connection before towing your trailer. Use a test light or a multimeter to check if power is flowing through the plug. Test each function individually, including the lights, brakes, and indicators, to ensure everything is working correctly.
If you encounter any issues during the testing phase, double-check the connections and consult the wiring diagram to troubleshoot the problem.
Step 5: Secure the Connection
After successfully testing the connection, it’s essential to secure the wiring to prevent it from getting damaged or disconnected while towing. Use electrical tape or zip ties to secure the wires along the trailer frame, away from any moving parts or heat sources.
Frequently Asked Questions On How To Connect 7 Pin Trailer Plug
How Do You Connect A 7 Pin Trailer Plug?
To connect a 7 pin trailer plug, simply match the corresponding pins on the plug and socket, ensuring a secure connection.
What Is A 7 Pin Trailer Plug Used For?
A 7 pin trailer plug is used to establish a connection between the towing vehicle and the trailer, allowing for the transfer of electrical signals, such as brake lights and turn signals.
How Do I Know Which Wire Goes Where On A 7 Pin Trailer Plug?
To determine which wire goes where on a 7 pin trailer plug, consult the wiring diagram specific to your vehicle and the trailer’s wiring system.
Can I Connect A 7 Pin Trailer Plug To A 5 Pin Socket?
No, a 7 pin trailer plug cannot be connected to a 5 pin socket as the number of pins and their corresponding functions differ between the two systems.
What Precautions Should I Take When Connecting A 7 Pin Trailer Plug?
When connecting a 7 pin trailer plug, ensure that all pins securely lock into place, double-check the wiring connections, and use appropriate safety measures, such as wearing gloves, to avoid electrical shocks.
Conclusion
Connecting a 7-pin trailer plug may seem daunting at first, but by following the step-by-step guide outlined in this article and ensuring proper wire connections, you can ensure a safe and reliable towing experience. Remember to double-check the wiring diagram of your trailer and carry out a thorough testing process to verify the functionality of each connection. With a solid electrical connection, you can confidently tow your trailer and enjoy your travels without any concerns.
